CE Approved and Certified,it has adopted 115% dynamic loading capacity and 150% staic loading capacity tested.

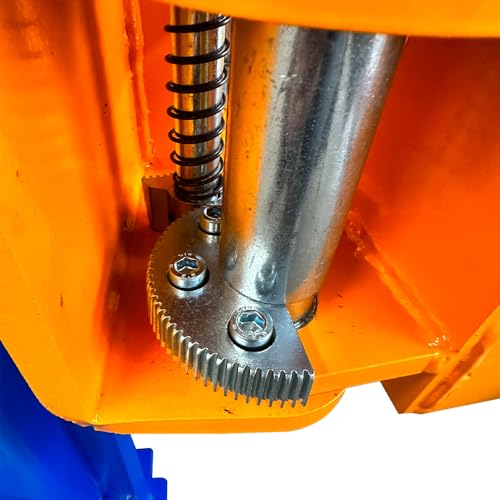

Manual safety release from two side.
Base plate design.
Dual Hydraulic Chain-Drive Cylinders.
Robber pad door opening protection.
Screw-on pad and extension support adaptor sets +100mm,

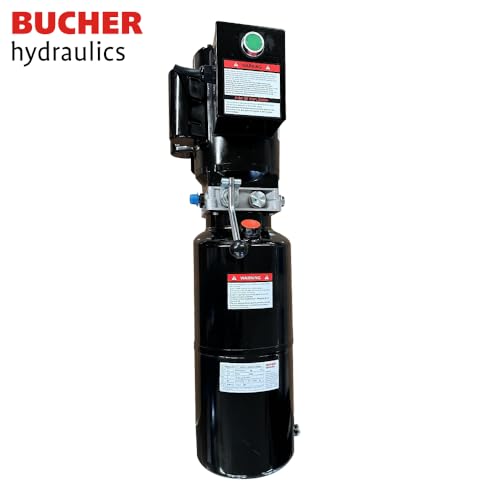

Top level hydraulic system with 220V/60HZ/1PH.
Specifications
Brand
Motool Technology
Manufacturer
Katool
Model
KT-H105
Material
metal
Style
hydraulic
Product Type
UTILITY_JACK
Included Components
Steel
Item Type Keyword
electric-hoists
unit
Description

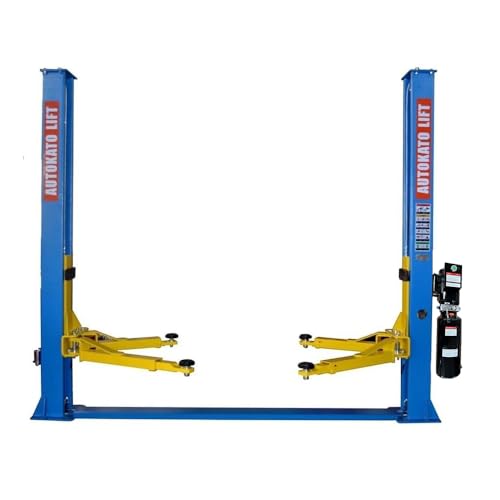

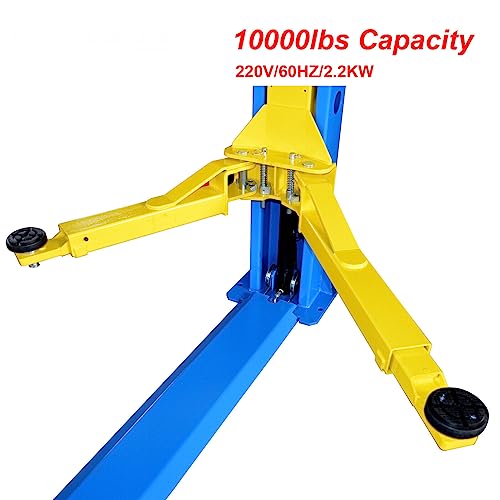

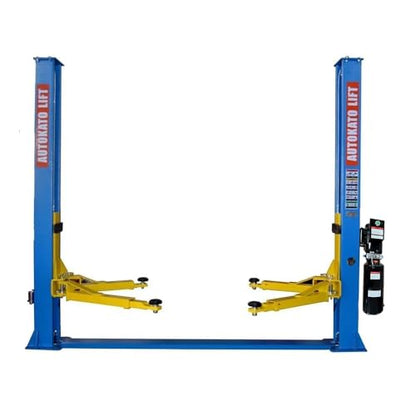

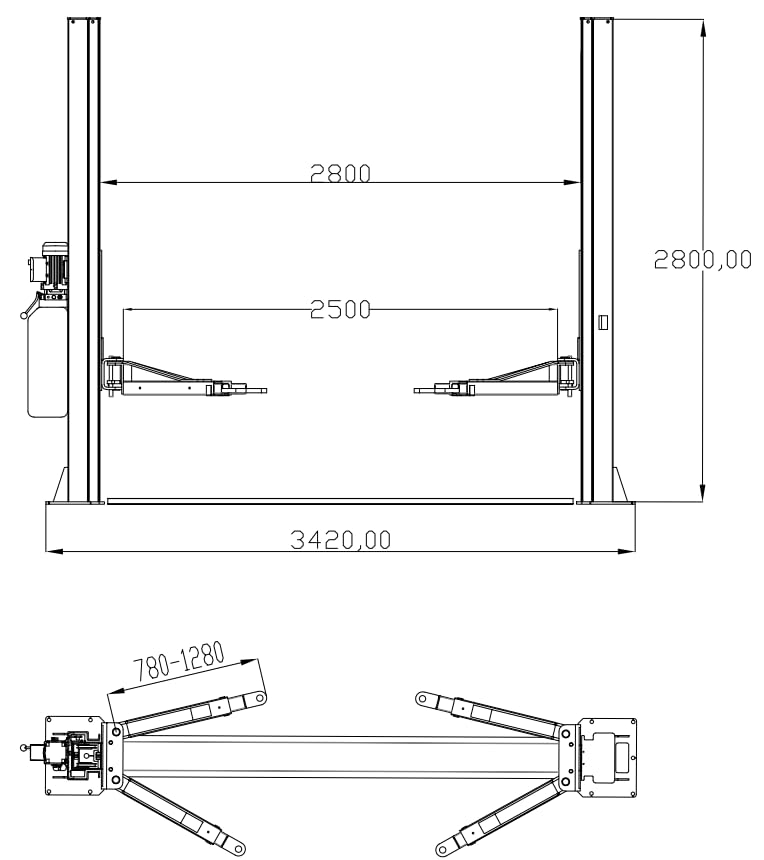

2 Post Lift AK-H105 Lifting Capacity 10000lbs.(4500KG) Max. Lifting Height 70.8"/1800mm Min. Height 3.9"/100mm Height Overall 110.9"/2818mm Width Overall 140.4"/3565mm Outside Column 124.8"/3170mm Inside Column 110.2"/2800mm Dirve-Thru Clearance 98.4"/2500mm Front Arm Reach(Min) 29.5"/750mm(2 stages) Front Arm Reach (Max) 46"/1170mm(2 stages) Rear Arm Reach(Min) 35.4"/900mm(2 stages) Rear Arm Reach(Max) 58.2"/1480mm(2 stages) Motor 220VAC/60HZ/1PH/2.2KW Net Weight 570KG -10000lbs lifting capacity -CE Approved and Certified,it has adopted 115% dynamic loading capacity and 150% staic loading capacity tested. -Manual safety release from two side. -Base plate design -Dual Hydraulic Chain-Drive Cylinders -Robber pad door opening protection. -Screw-on pad and extension support adaptor sets +100mm -Top level hydraulic system with 220V/60HZ/1PH
