6000W Split Phase Pure Sine Wave Inverter

6000W Split Phase Pure Sine Wave Inverter

$2,651.00 USD
$2,651.00 USD
Sale Sold out
Shipping calculated at checkout.

Key Features

  • POWERFUL: 6000 watts continuous, 12000 watts peak power, 24 volt DC to 120V 240V AC split phase true sine wave inverter, built-in soft starter, high frequency design with high surge capability to power demanding loads like air conditioner, refrigerator, power tools, and more

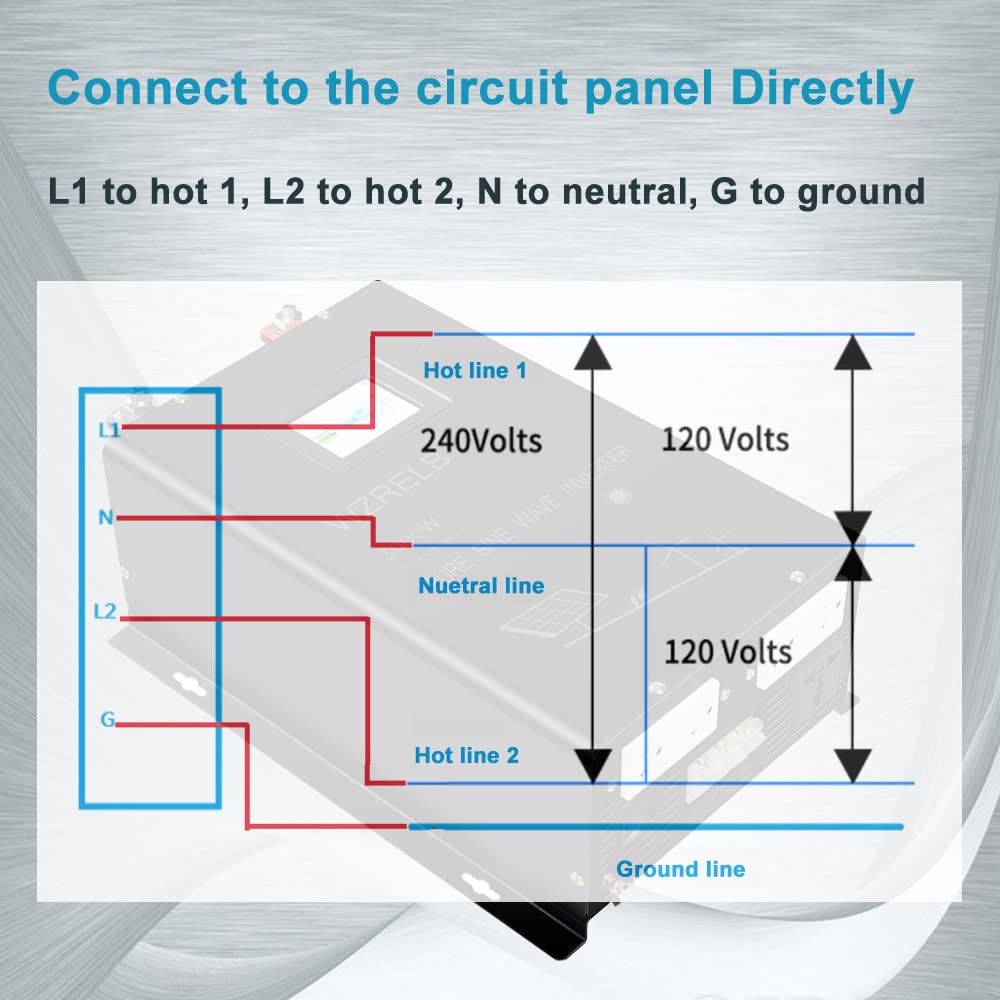

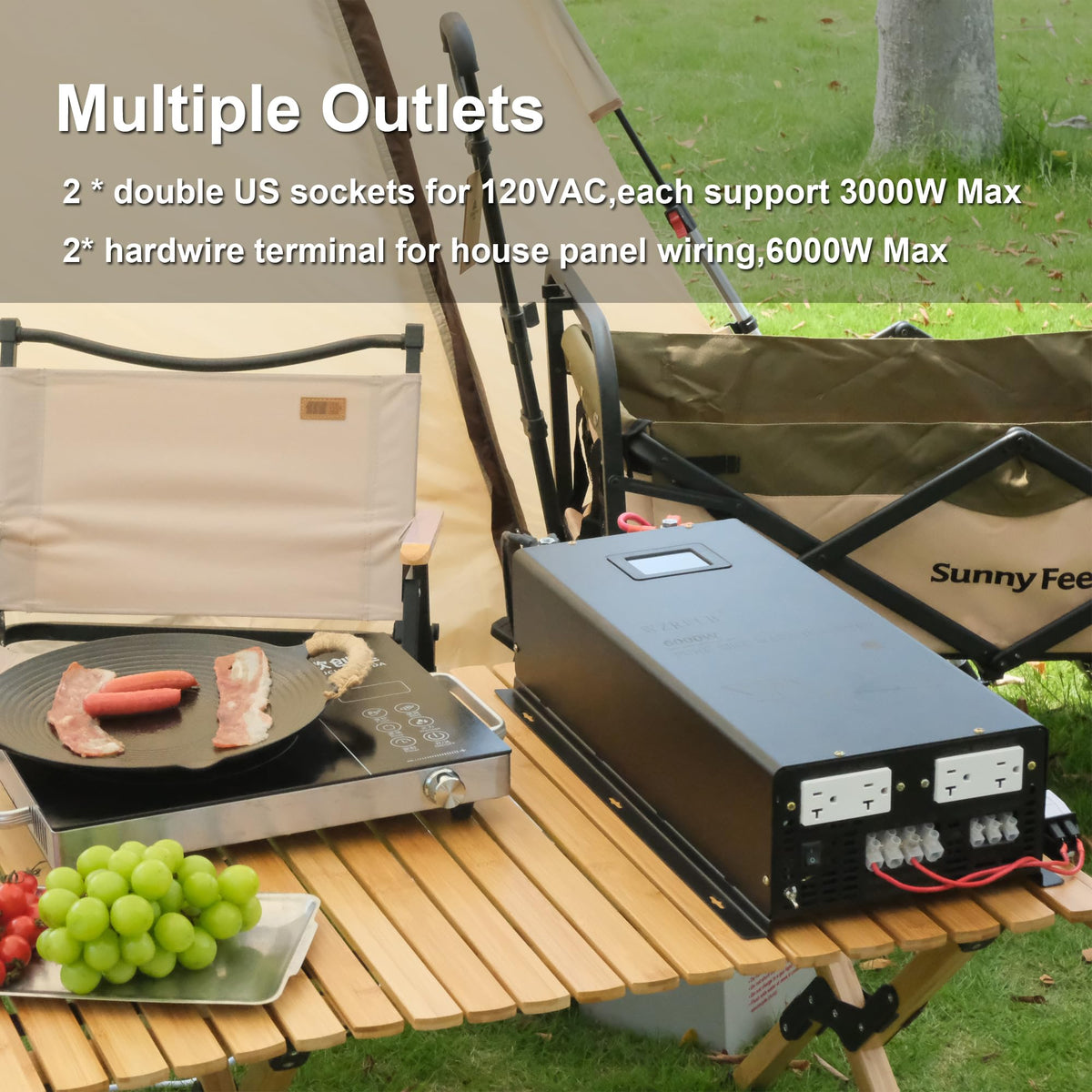

  • FEATURES: 2 circuit 120v AC outputs with 4 AC outlets ,each circuit can support 3000W output at the same time ,one circuit 240VAC with max 6000W output ,one AC hardwire terminal with Multiple output (L1+L2=240V, L1+N=120V, L2+N=120V )

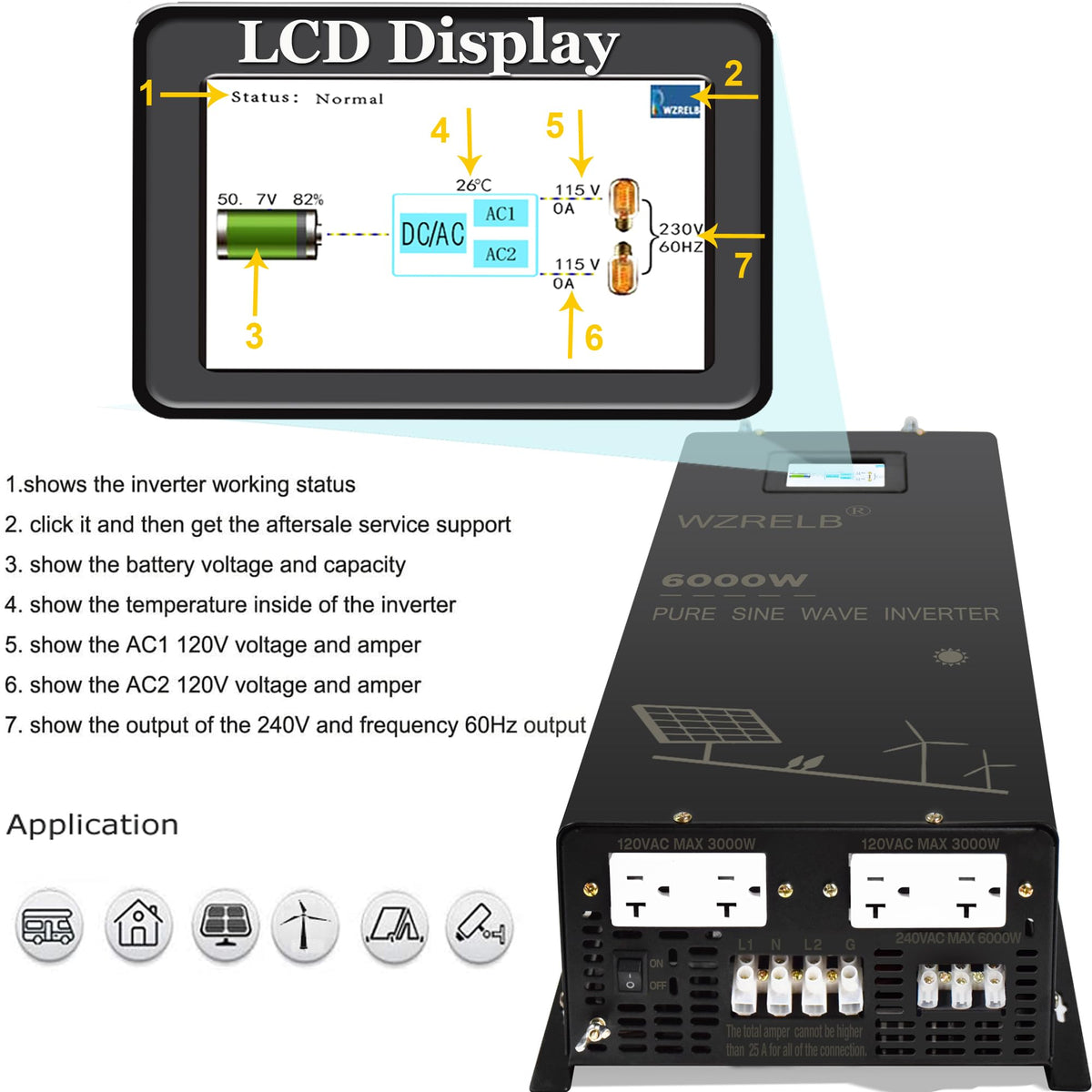

  • Intelligent control: LCD display monitors battery status, working temperature, 120V 240V output voltage status, effective feedback battery, inverter, load working status
  • PROTECTIONS: Temperature-controlled cooling fan, low and high voltage alarmutdown,multi-protections against overload, short circuit, over temperature, high voltage, low voltage, internally fused, battery reverse etc.

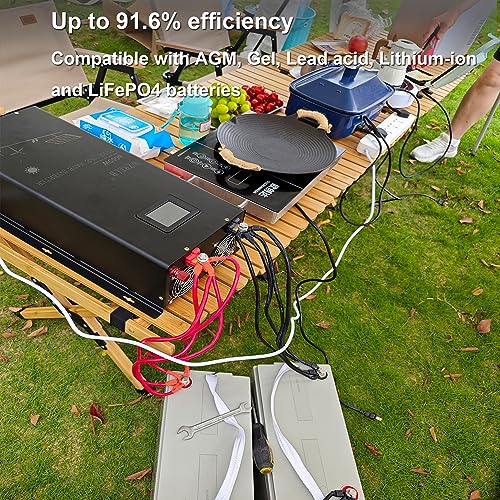

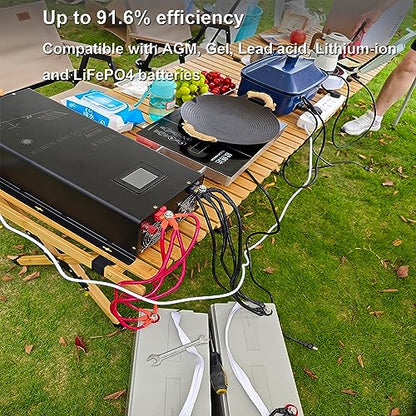

  • APPLICATIONS: a must for off-grid live and Power Failure Emergency , compatible with AGM, gel, flooded, lead-acid and lithium-ion batteries, , ideal for home, cabin, mobile business, RV, trailer, semi-truck, boat, and more

Specifications

Brand WZRELB
Manufacturer Yueqing Reliable Electric co.,ltd
Model SPVC600024
Color Black
Size Split Phase 6000W 24V
Product Type POWER_INVERTER
Included Components Inverter Cable, Fuse, 6000W inverter
Recommended Uses Home
Item Type Keyword vehicle-power-inverters
Item Dimensions H: 135 / L: 533 / W: 249 (Weight: 11340)
Package Dimensions H: 222 / L: 616 / W: 330 (Weight: 12701)
unit

Description

Inverter Specification Rated Continuous power:6000W Surge output power: 12000W Standby input power: 6000W<40W DC Input Voltage : 24V DC input voltage range:20~30VDC High battery shut down:30V Low voltage shut down: 19.5V±1V AC output voltage (nominal): 120VAC and 240VAC AC output frequency:60±2Hz AC output waveform: Pure sine wave Conversion efficiency: ≧91.6% Ambient operating temperature range: 32℉-104℉/0℃-70℃ Cooling method:Intelligent temperature controlled fan or the load power reaches to the half of the inverter power Protection: Input low voltage protection, Input high voltage protection, overload protection, temperature protection, short circuit protection, battery reverse protection. Packings: inverter, cable, fuse, manual,warranty card. NOTE:The fuse is for the replacement of the fuse inside of the inverter as a backup. No need of change for usage in the first time.
