LO Lock Entrance (Entrance/Keylock)

Key Features

• ENTRANCE/KEYLOCK FUNCTION: This Entrance/Keylock Function lets you lock the outside lever with a push button. The door lock opens with a key from outside, while the inside lever always turns freely for quick exit. Durable for daily use.
• COMMON DOOR PREP: Works with 161 prep and 2-1/8 in. bores. A 2-3/4 in. backset, optional 2- 3/8 in. backset, 1/2 in. latchbolt throw, and square-corner faceplate help align door lock latch prep.
• FLEXIBLE INSTALLATION: Non-handed construction installs on right- or left-hand openings, while the lever set fits 1-3/8 in. to 1-3/4 in. doors plus 1-1/2 in. to 2 in. slabs for mixed room and hallway projects.

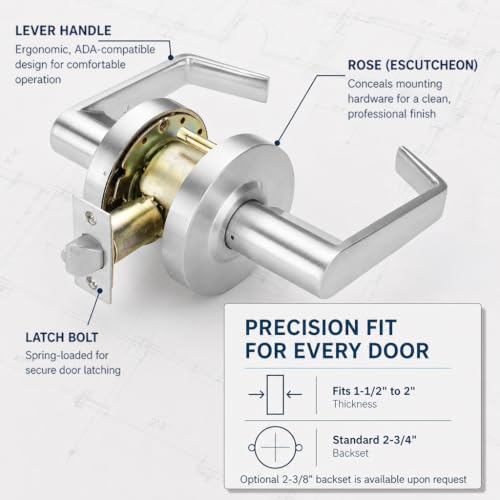

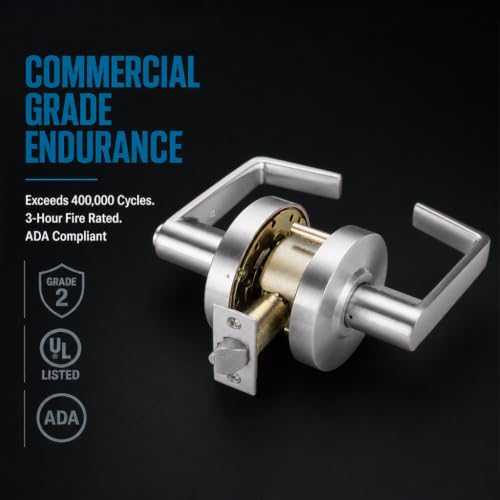

• ACCESSIBLE LEVER: The L-shaped lever follows A117.10 ADA accessible design standards; ANSI/BHMA A156.2 Grade 2 criteria above 400,000 cycles and a 3-hour fire rating suit front door handle and interior plans.

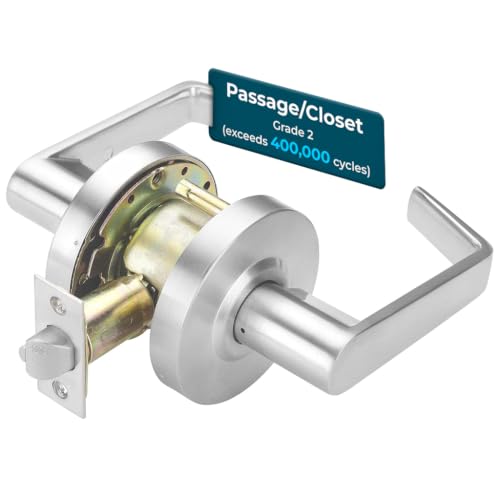

• KEYED HARDWARE SET: Includes lockset, template, ANSI strike, reversible latch, and C-Keyway 6-pin cylinder with two keys for locks with keys; passage, entrance, storeroom, classroom, and clutch options cover office and managed-room openings.

Specifications
